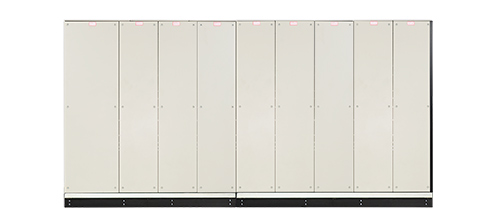

Symmetra MW 1000kW IP Frame, 400V

Includes: Assembly service , Installation Guide , Start-Up Service , User Manual

Symmetra MWFeatures & Benefits

Sustainability

• EU CoC for UPS
  Ensures that UPSs sold in the EU are highly efficient

Agility

• Parallel-redundant capable
  Power the connected equipment with multiple uninterruptible power supplies to increase system redundancy
• Parallel-capacity capable
  Increases total power capacity by using multiple uninterruptible power supplies simultaneously.
• Multiple cable-entry points
  Provides flexibility of UPS placement in the room and easy access to install cabling to the terminal blocks.
• Scalable runtime
  Allows additional run time to be quickly added as needed.
• Front-access servicing
  Simplifies installation and UPS maintenance while minimizing space requirements.
• Scalable power capacity
  Reduces UPS over-sizing costs today by allowing quick power upgrades, within the same footprint, later.

Total Cost of Ownership

• Compatible with Schneider Electric's lithium ion battery solution
  Reduces system footprint and weight, cooling and maintenance requirements, and total cost of ownership; offers double the life of VRLA batteries; and improves backup storage predictablity and manageability.

• Temperature-compensated battery charging
  Prolongs battery life by regulating the charge voltage according to battery temperature.
• Automatic self-test
  Periodic battery self-test ensures early detection of a battery that needs to be replaced.
• Intelligent battery management
  Maximizes battery performance, life, and reliability through intelligent, precision charging.
• Manageable external batteries
  Reduces preventative maintenance service needs by monitoring the health and status of the external batteries and their expected runtime.
• Fully-rated power kVA equals kW
  Reduces cost by eliminating the need for an oversized UPS for Power Factor Corrected (PFC) loads.
• Input power factor correction
  Minimizes installation costs by enabling the use of smaller generators and cabling.

Availability

• Generator compatible
  Ensures clean, uninterrupted power to protected equipment when generator power is used.
• Configurable for N+1 internal redundancy
  Provides high availability through redundancy by allowing configuration with one more Power Module than is necessary to support the connected load.
• Network manageable
  Provides remote power management of the UPS over the network.
• Audible alarms
  Provides notification of changing utility power and UPS power conditions
• Power Modules connected in parallel
  Enhances availability by allowing immediate, seamless recovery from isolated module failures.
• Modular design
  Provides fast serviceability and reduced maintenance requirements via self-diagnosing, field-replaceable modules.
• Battery failure notification
  Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Marketing Features

• Scalable power capacity
  Reduces UPS over-sizing costs today by allowing quick power upgrades, within the same footprint, later.
• Battery modules connected in parallel
  Delivers higher availability through redundant batteries.
• LCD display
  Provides schematic overview of critical data for guided operation and troubleshooting on color LCD touch-screen.
• Modular design
  Provides fast serviceability and reduced maintenance requirements via self-diagnosing, field-replaceable modules.
• Input power factor correction
  Eliminates the need for an external phase-compensation unit and minimizes installation costs by enabling the use of smaller generators and cabling.
• Fully-rated power kVA equals kW
  Reduces cost by eliminating the need for an oversized UPS for Power Factor Corrected (PFC) loads.
• Generator compatible
  Ensures clean, uninterrupted power to protected equipment when generator power is used.
• Power Modules connected in parallel
  Enhances availability by allowing immediate, seamless recovery from isolated module failures.
• Configurable for N+1 internal redundancy
  Provides high availability through redundancy by allowing configuration with one more Power Module than is necessary to support the connected load.

  Output

  • Output power capacity
    1.0 MWatts / 1.0 MVA
  • Max Configurable Power (Watts)
    1.0 MWatts / 1.0 MVA
  • Nominal Output Voltage
    400V 3PH
  • Output Voltage Note
    Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage
  • Output Voltage Distortion
    Less than 5% at full load
  • Output Frequency (sync to mains)
    50 Hz - programmable +/- 0.5 / 1 / 2 / 4 / 6 / 8%
  • Output Frequency (not synced)
    50Hz +/- 0.1% for 50Hz nominal
  • Other Output Voltages
    380, 415
  • Load Crest Factor
    Unlimited
  • Topology
    Delta Conversion On-Line
  • Waveform type
    Sine wave
  • Maximum Output Current
    1838
  • Output Connections
    (1) Hard Wire 4-wire (3PH - PEN) (Battery Backup)

    (1) Hard Wire 4-wire (3PH + N) (Battery Backup)

    (1) Hard Wire 4-wire (3PH + G) (Battery Backup)

    (1) Hard Wire 5-wire (3PH + N + G) (Battery Backup)
  • Bypass
    External Static Bypass

  Input

  • Nominal Input Voltage
    400V 3PH
  • Input frequency
    50 Hz - programmable +/- 0.5 / 1 / 2 / 4 / 6 / 8%
  • Input Connections
    Hard Wire 4-wire (3PH + G), Hard Wire 4-wire (3PH + PEN), Hard Wire 5-wire (3PH + N + G)
  • Input voltage range for main operations
    323 - 437 (380V), 340 - 460 (400V), 353 - 477 (415V)V
  • Input voltage adjustable range for mains operation
    323 - 437 (380V), 340 - 460 (400V), 357 - 477 (415V)V
  • Number of Power Cords
    1
  • Other Input Voltages
    380, 415
  • Input Power Factor at Full Load
    0.99

  Batteries & Runtime

  • Battery type
    No internal battery - uses external battery system
  • Extendable Run Time
    1
  • Extended Run Options
    Symmetra-MW-1000kW-IP-Frame-400V
  • Efficiency







  Communications & Management

  • Interface Port(s)
    Contact Closure , DB-9 RS-232 , RJ-45 10/100 Base-T , RS-485 , SYMWSUCBL
  • Control panel
    Touch Screen LCD User Interface
  • Audible Alarm
    Audible and visible alarms prioritized by severity
  • Emergency Power Off (EPO)
    Yes

  Physical

  • Maximum Height
    2032mm , 203.2cm
  • Maximum Depth
    1067mm , 106.7cm
  • Shipping Height
    2235mm , 223.5cm
  • Shipping Depth
    1280mm , 128.0cm
  • Color
    Light grey (NCS 2703-G84Y)
  • Units per Pallet
    1.0

  Environmental

  • Operating Environment
    0 - 40 °C
  • Operating Relative Humidity
    0 - 95 %
  • Operating Elevation
    0-999.9meters
  • Storage Temperature
    -50 - 40 °C
  • Storage Relative Humidity
    0 - 95 %
  • Storage Elevation
    0-15000meters
  • Audible noise at 1 meter from surface of unit
    75.0dBA
  • Online thermal dissipation
    105600.0BTU/hr
  • Protection Class
    IP 20

  Conformance

  • Approvals
    CE, EN 50091-1, EN 50091-2, EN 50091-3, EN 60950, EN/IEC 62040-3, FCC Part 15 Class A, IEC 60950, ISO 14001, ISO 9001, VFI-SS-111
  • Standard warranty
    1 year repair or replace

  Sustainable Offer Status

  • REACH
    REACH: Contains No SVHCs
