Product Name : AR4038IA
Item# : 151258-875
Model : 151258-875
Was Price: CNY0/pc
Now Price : CNY0/pc
Last update : 2016.12.13
Manufacturer :
More Picture:

NetShelter CX

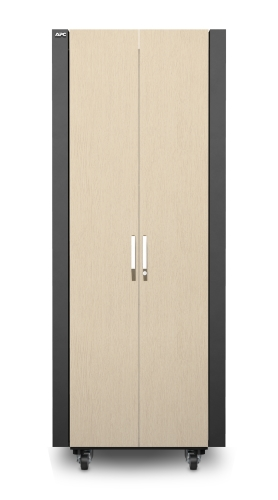

NetShelter CX 38U Secure Soundproof Server Room in a Box Enclosure International

Specialized enclosures with integrated cooling, noise dampening, and power distribution for server and network applications in office environments.

Includes: Casters, Key(s), Leveling feet, Rack Power Distribution Unit (PDU), Side Panels, Unpacking sheet

AR4038IA Features

Integrated power distribution
Provided with a rack power distribution unit servers and other equipment are ready for deployment.
Acoustic foam lining for noise dampening
Superior noise reduction of installed IT equipment allowing the enclosure to be placed in a quiet environment.
Integrated heat removal
High efficiency fan modules remove heat and eliminate the need to purchase a costly cooling unit for your IT equipment.
Dedicated rear cable access point
The cable port has a capacity of up to 400 cables and is situated perfectly for ground or under-floor cabling.
Removable side panels
Provides customers with easy accessibility to equipment.
Light oak veneer finish
The enclosure blends discretely into almost any office environment.
Four vertical 0U accessory channels and cable containment brackets
Provides multiple mounting locations for cable management accessories and rack PDUs without using critical equipment space.
Adjustable equipment mounting rails
The equipment mounting rails, front and rear, are fully adjustable for various mounting depths, for rear-facing equipment mounting or additional clearance from the front door. Maximum rack depth 88 cm/34.6 in. Minimum rack depth 12 cm/4.7 in.

NetShelter CX Features & Benefits

Agility
Plug and Play setup
Fast and Easy set up
Toolless Rack Mounting Capabilities
Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.
Lockable front doors
Protect IT equipment from unwanted access
Light oak veneer finish
The enclosure blends discretely into almost any office environment.
Acoustic foam lining for noise dampening
Superior noise reduction of installed IT equipment allowing the enclosure to be placed in a quiet environment.

Input

Nominal Input Voltage
200V, 208V, 230V
Input Frequency
50/60 Hz
Input Connections
IEC-320 C14

Physical

Net Weight
438.90 lbs. (199.50 kg)
Maximum Height
76.77 inches (1950 mm)
Maximum Width
29.53 inches (750 mm)
Maximum Depth
44.49 inches (1130 mm)
Shipping Weight
530.20 lbs. (241.00 kg)
Shipping Height
84.65 inches (2150 mm)
Shipping Width
31.50 inches (800 mm)
Shipping Depth
47.24 inches (1200 mm)
Weight Capacity (static load)
1000.00 lbs. (454.55 kg)
Minimum Mounting Depth
28.35 inches (720 mm)
Maximum Mounting Depth
31.50 inches (800 mm)
Rack Height
38U
Rack Width
19"
Color
Grey, Oak
Units per Pallet
1.00

Conformance

Regulatory Approvals
EN 60950
Standard Warranty
2 year (manufacturer's defect)
Standards
EIA 19 Inch, TAA compliance

Sustainable Offer Status

RoHS
Compliant
REACH
REACH: Contains No SVHCs
